Wi-Fi for a 3,500+ sq ft Home: One Router Is Never Enough

A 3,500 square foot home is not a 1,500 square foot home with extra rooms bolted on, and it is not a 2,500 square foot one either. The far corner sits three or four walls and 60 feet from the router, and no amount of antenna marketing changes that. The question is not whether you need a second broadcast point. It is how many you need, where they go, and whether they talk to each other over the air or over a cable.

That last decision matters more than which brand you buy.

Why one router runs out of house#

A router does not fail at some fixed distance. It fails when it runs out of budget. Every router starts with a fixed amount of transmit power, and every wall, floor and appliance between it and your laptop spends some of it.

In typical timber-and-drywall construction, a well-placed router holds a usable 5 GHz signal — better than about -67 dBm — out to roughly 50 to 75 feet through one or two interior walls. Add a third and fourth wall, as any big house does, and that collapses fast; link rates fall away long before the bars do. Real coverage is not the clean circle those numbers imply either — it is a lobed shape chewed back by whatever the signal crosses — so plan on a fraction of the area a 60-foot circle suggests. Call it 1,000 to 1,500 usable square feet, and only if the router sits near the middle of it.

Those are rules of thumb, not measurements, and the area column already discounts for the fact that coverage is never circular. The arithmetic is unforgiving either way. At 3,500 square feet you are covering two to seven of those footprints, and a router produces one.

A second limit has nothing to do with signal. A big house often holds 30 to 60 connected devices sharing airtime on one radio, and a doorbell camera clinging on at -75 dBm steals far more of it than its bitrate suggests.

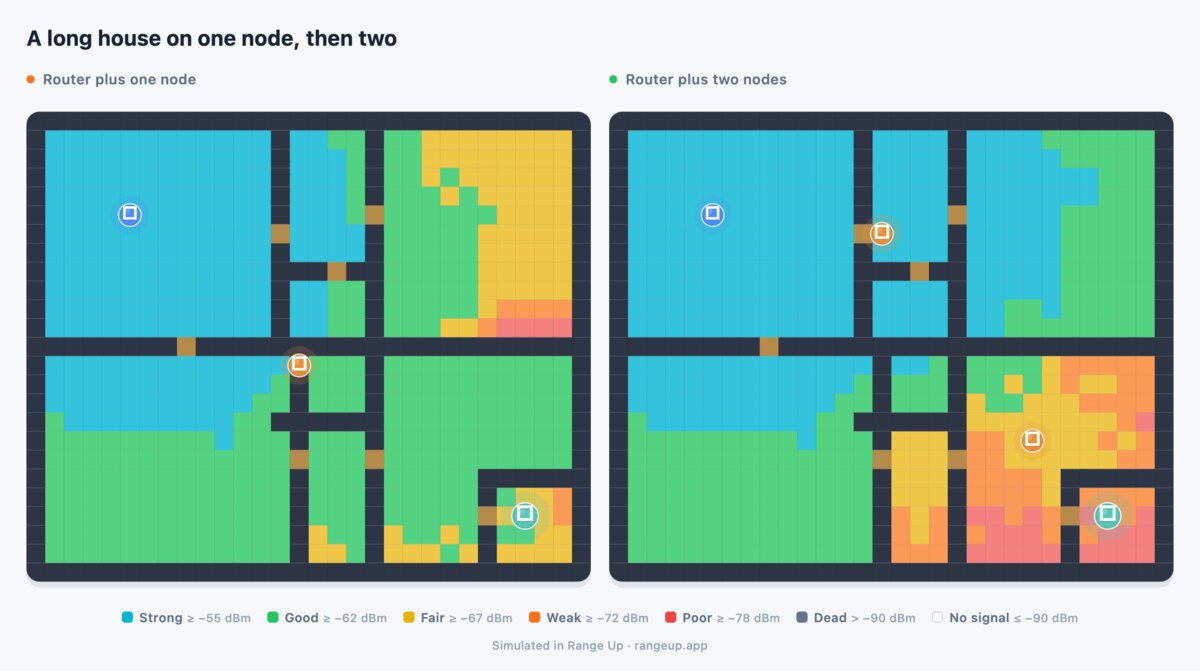

How many nodes for 3,500 square feet#

Start from one broadcast point per 1,000 to 1,500 square feet in drywall construction, or one per 700 to 1,000 square feet in masonry, then adjust for shape and floors.

Two things break that arithmetic. A long, thin footprint needs more units than a square one of the same area. And a router stuck at the coax or fiber entry in a far corner costs you roughly one extra node, because half its coverage is spent on the yard.

Zone the house before you place anything#

Forget products for a moment. Think in zones: chunks of the house one unit can serve.

1. Sketch the footprint and mark the service entry, where the coax or fiber actually lands. That is where the router lives unless you are willing to move it or run a cable.
2. Cross out the rooms that do not matter. The garage, the utility room, the guest bedroom used twice a year. Coverage you do not need is coverage you should not pay for.
3. Group the rooms that remain into zones of roughly 1,000 to 1,200 square feet, each with a plausible unit location: an outlet at waist height or above, out in the open.
4. Rank the zones. The home office on video calls and the 4K TV come first. The spare bedroom comes last. This ranking decides who gets the wired backhaul.
5. Give every zone a backhaul plan. Cable if you can reach it, wireless if you cannot — and if wireless, the zone must sit inside the previous unit's strong coverage, not at its edge.
6. Check the seams. Where two zones abut, their coverage should overlap at around -67 dBm, so your phone always has somewhere to hand off to.

Wired backhaul is the whole ball game#

One Ethernet cable changes the math more than any product upgrade. A wired access point mid-house is a second router: full speed, no airtime penalty. A wireless node is a repeater that spends part of every second listening instead of serving.

Ranked by how well they actually work:

• Ethernet (Cat5e or Cat6). Full speed, no compromise. One run to the geometric center of the far half of the house is worth more than two extra wireless nodes.
• MoCA over existing coax. If the house was cabled for TV, you likely already have a wire to every room. Real-world throughput typically lands in the high hundreds of Mbps — far beyond a wireless hop at range.
• Powerline. Wildly variable. Fine on one circuit with modern wiring; often collapses across breaker legs in a big house. Test before you commit.
• Wireless backhaul. Acceptable for one hop into a strong-signal zone. Poor for the third node in a chain.

Spend your one cable run on the far zone, not the convenient one. The unit nearest the router can afford a wireless link — that hop is short and clean. The one at the end of the house cannot.

Keeping the nodes from fighting each other#

More units is not automatically more coverage. Badly spaced ones fight over the same airtime and hand your phone back and forth.

• Overlap, but only just. Aim for the boundary between two units to land where each reads around -67 dBm. Much more overlap than that and devices cling to the wrong unit; much less and you get a hole in the hallway where calls drop as you walk.
• Reuse channels deliberately. Two units on the same 5 GHz channel within earshot of each other have to take turns, so their capacity is shared rather than added. If your system lets you set channels, separate neighboring units, and keep 2.4 GHz radios on 1, 6 and 11 in rotation.
• Consider narrower channels. An 80 MHz channel is great in a detached house with no neighbors. In a dense suburb, with several of your own nodes plus everyone else's, 40 MHz is often more stable.
• Chain along a long house, star around a compact one. In a 70-foot ranch, units in a line each reach the next. In a square footprint, everything should hang off the router directly. The general spacing rules live in the guide to spacing mesh nodes.
• Two wireless hops is the ceiling. Beyond that, latency and loss make video calls unreliable no matter how good the signal bars look. See what happens when you chain extenders.

What each approach actually costs#

Relative cost, not prices — street prices move constantly and we do not track them. The ranking is what is stable, for a 3,500 square foot home needing three broadcast points.

The pattern is consistent: wiring beats hardware. The honest extender case is narrow, too — in a home this size one extender fixes one room that sits a single hop from a strong signal. It is not a coverage strategy for 3,500 square feet. Choosing between a repeater and a mesh kit is the decision framework if you are still choosing.

A worked plan for a 3,600 sq ft two-story#

A common shape: 1,800 square feet per floor, fiber landing in a front corner office downstairs, four bedrooms upstairs.

• Zone 1 (router): front half of the ground floor — office, living room, entry.
• Zone 2 (node, wired over existing coax): back of the ground floor near the kitchen, roughly 35 feet from the router. It gets the cable because it also has to push signal up through the floor to the back bedrooms.
• Zone 3 (node, wireless): upstairs landing, above the stair opening. The stairwell is the cleanest vertical path in almost any house, so this backhaul link travels through open air instead of through a floor.
• Left out on purpose: the garage. If it ever matters it gets its own wired unit, not a fourth node hanging off the chain.

Three broadcast points, one wireless hop at most, every priority room within about 25 feet of a radio.

Zoning 3,500 square feet on a drawing#

Zoning a large house is the part that is hard to hold in your head and easy to draw. Trace the footprint in Range Up, set the material preset to the construction you have — wood frame, brick or concrete, with the wall and floor loss values there to nudge if your house is unusual — and put the router on the spot the fiber or coax forced it into. The heatmap immediately shows you which chunks of the house one radio can genuinely serve — which is the zone exercise above, done in a couple of minutes instead of an evening. Name a zone that fails, run the automatic search, and it works through the plausible node positions for you and puts its best pick beside your current coverage. Stack the second floor and the same picture extends upward in 3D.

For a house this size the question worth answering that way is the node count: whether a third unit adds anything a better-placed second one would not, and where the one cable run should land. Answer it on the plan and you buy once. Try it on your own floor plan, or start with the general placement guide if you are still deciding what hardware you need.
