Wi-Fi Extender Placement in a Two-Story House

Downstairs works. Upstairs is a lottery, and the back bedroom is the room that made you search for this. So you buy an extender, plug it into the room with the problem, and the bars go up while the video keeps stalling.

A two-story house is not a wider single-story one. The expensive obstacle is lying flat between the floors, and the only cheap way past it is a hole the builder already cut for you.

A floor costs more than the walls do#

On a single floor, your signal budget goes on interior walls — a few dB each, countable off a plan. Between floors you cross a structural assembly: subfloor, joists, insulation, ductwork, pipes and a ceiling board. It is thicker, denser and full of metal a partition wall never has. The useful unit is wall-equivalents.

Those are planning rules of thumb, not measurements, and each moves several dB depending on where the services run. The per-material numbers behind them are in how walls affect Wi-Fi signal.

Two consequences drive the rest of this article. First, 5 GHz pays far more than 2.4 GHz to cross a floor — typically half again to twice as much through the same assembly, which is why upstairs rooms so often have workable 2.4 GHz and unusable 5 GHz. Second, only the room directly above the router pays the straight-down price. Everywhere else the signal enters the floor at an angle and crosses more material than the floor is thick, as the diagonal math for a single bedroom shows.

Which floor the router belongs on#

In most two-story homes this is already decided: the service enters at the front of the ground floor and the router lands within six feet of it. That is usually not what hurts you. Three things are.

Is it near the stairs? Move the router toward the stair core, not the middle of the ground-floor plan. In three dimensions the center of a two-story house is the stairwell, because that is the one place both floors are reachable cheaply. Fifteen feet along an existing coax run is often worth more than the extender you were about to buy.

Is it high? Here you are aiming upward as well as outward.

Is the wireless use actually upstairs? If the TV, console and desktop downstairs are all wired and every phone and laptop lives in the bedrooms, the router is on the wrong floor. One Ethernet run upstairs, or an old router repurposed as an access point up there, beats any extender. The positioning rules are the same on either floor — where to put your router covers them.

The stairwell is the only cheap way up#

A stair opening is a permanent hole several feet wide in the most expensive obstacle in the house, and almost nobody puts it on the plan.

• The vertical center of the house is the stair core. Judge candidate positions by how well they see the stair opening, not by how central they look on paper.
• A door at the top or bottom of the flight sits on the pinch point. A closed solid-core door costs roughly 4 to 6 dB on the only good vertical path in the building. Leaving it open is the cheapest fix in this article.
• Open treads and a switchback with an open well beat a boxed-in straight run. An enclosed flight behaves like a duct: signal travels along it, then has to escape through a doorway at the end.

Why the upstairs landing usually wins#

The floor is expensive and the stairwell is nearly free, so the answer for most two-story homes falls out. An extender at the head of the stairs does three things at once.

1. It hears the router through air. Its link back to the router goes up the stair void instead of through the joists — frequently the difference between a -58 dBm backhaul and a -72 dBm one.
2. It serves the upper floor from the same plane. Every bedroom is now one or two stud walls away at 3 to 6 dB each, instead of a floor plus walls plus a closed door.
3. It lands near the middle of the upper floor by design. Stairs usually arrive in the center of the upstairs hall with bedrooms off it both ways, so a central position comes free.

The backhaul target is the same as anywhere: the furthest position where the router still reads about -60 to -67 dBm, which is the rule that replaces the halfway rule.

Three cases move the unit off the landing. If the stairs come up at the front and the problem room is at the back, step one outlet past the landing toward it — but only while the backhaul stays inside that window. If the landing sits directly above the router, push the unit toward the weak end instead. And if the only landing outlet is at floor level, an extension cord onto a waist-height shelf is a legitimate fix.

A worked example: 1,800 sq ft over two floors#

Nine hundred square feet per floor, roughly 30 by 30 feet, timber joists, stud walls, stairs arriving in the middle of the upstairs hall. The router is in the front corner of the ground floor because that is where the service enters. The failing room is the back bedroom upstairs, diagonally opposite.

Straight through the floor, that bedroom fights an angled crossing of the joists, then two stud walls, then a closed door — typically 25 to 35 dB below the room directly above the router, or somewhere around -75 to -82 dBm. Nothing is broken. The budget ran out.

Work in this order.

1. Mark the stair opening on both floors. Everything else is measured from it.
2. Fix the router before buying anything. Move it toward the stair core, up onto a shelf at five or six feet, and retest. A meaningful share of two-story extender purchases are router-placement problems.
3. Name the one room that has to work. Not the whole upstairs.
4. Draw two lines: router to the stair opening downstairs, then head of the stairs to that room. The first should cross at most one wall, the second one or two.
5. List the outlets within about ten feet of the head of the stairs that sit at waist height or above and are not inside a closet.
6. Pick the one furthest along the second line that still reads -60 to -67 dBm back to the router. If nothing on the landing reaches that window, go back to step 2.
7. Test in the back bedroom, at the hour and with the activity that made you care. Standing next to the extender proves nothing.

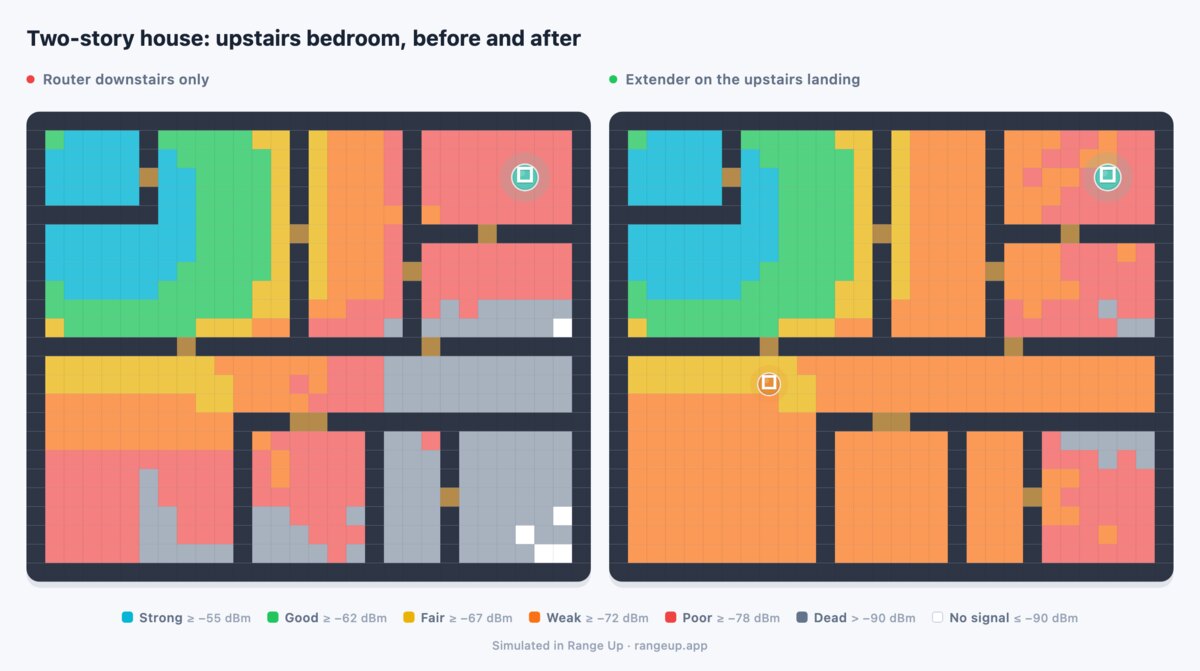

Expect a landing unit here to move the back bedroom from roughly -78 dBm into the -60 to -66 dBm range. That 12 to 18 dB swing is typically the difference between a 5 GHz link negotiating in the tens of Mbps and one in the low hundreds. If your own before-and-after is 3 dB, the position is wrong or the extender is the wrong tool.

When an extender is the wrong tool for a two-story house#

• Concrete between the floors and an enclosed stairwell. Two hard stops at once. Run a cable — an Ethernet drop or a MoCA adapter over the existing coax — and put a second access point upstairs.
• The whole upper floor is weak. That is a two- or three-node job planned together, not one repeater. Counts and node-to-node targets are in how many mesh nodes a home needs and where they go.
• The upstairs room needs real throughput. A single-radio extender roughly halves what it delivers: fine for phones, thin for a 4K TV or an office pushing large uploads.
• The ground floor is patchy too. An extender upstairs cannot rescue a router failing on its own floor.

A third level above or below changes the arithmetic enough to need its own plan — see where the extender goes in a three-story home. Levels offset by half a story rather than a full one are a different case again, worked through in split-level and bi-level placement.

Planning both floors before you buy#

Steps 4 to 6 are the ones you cannot really do on foot, because comparing the landing outlet against the hall outlet means standing upstairs and downstairs at the same time. In Range Up you draw both floors, stack them so the stair opening lines up, set the material preset to match the build and raise the floor loss if your joists carry ductwork, and mark the corner the router actually occupies. Point it at the back bedroom and it works through candidate spots on both levels, orders them by what each one does for that bedroom, and sets the winning heatmap beside your current one. Both floors and the 3D view are free; Premium is the part that drops the extenders and draws the Before / After comparison. In 3D you can see at a glance whether the leading position is using the stairwell or fighting the joists.

A disappointing result is just as useful: if the best candidate moves the bedroom only a few dB, the money belongs in a wired access point instead. Start a plan for your own house, or read the full placement walkthrough first.
