Basement Wi-Fi: Getting Signal Below Grade

The router is on the main floor, twenty feet from the top of the basement stairs. You walk down and the bars fall off somewhere around the fourth step. By the time you reach the couch, the stream is buffering and a video call has given up.

That is not a weak router. It is geometry. The basement sits behind the most expensive obstacle in the house, and the fix depends entirely on which path the signal is actually taking.

Why the basement is the hardest room in the house#

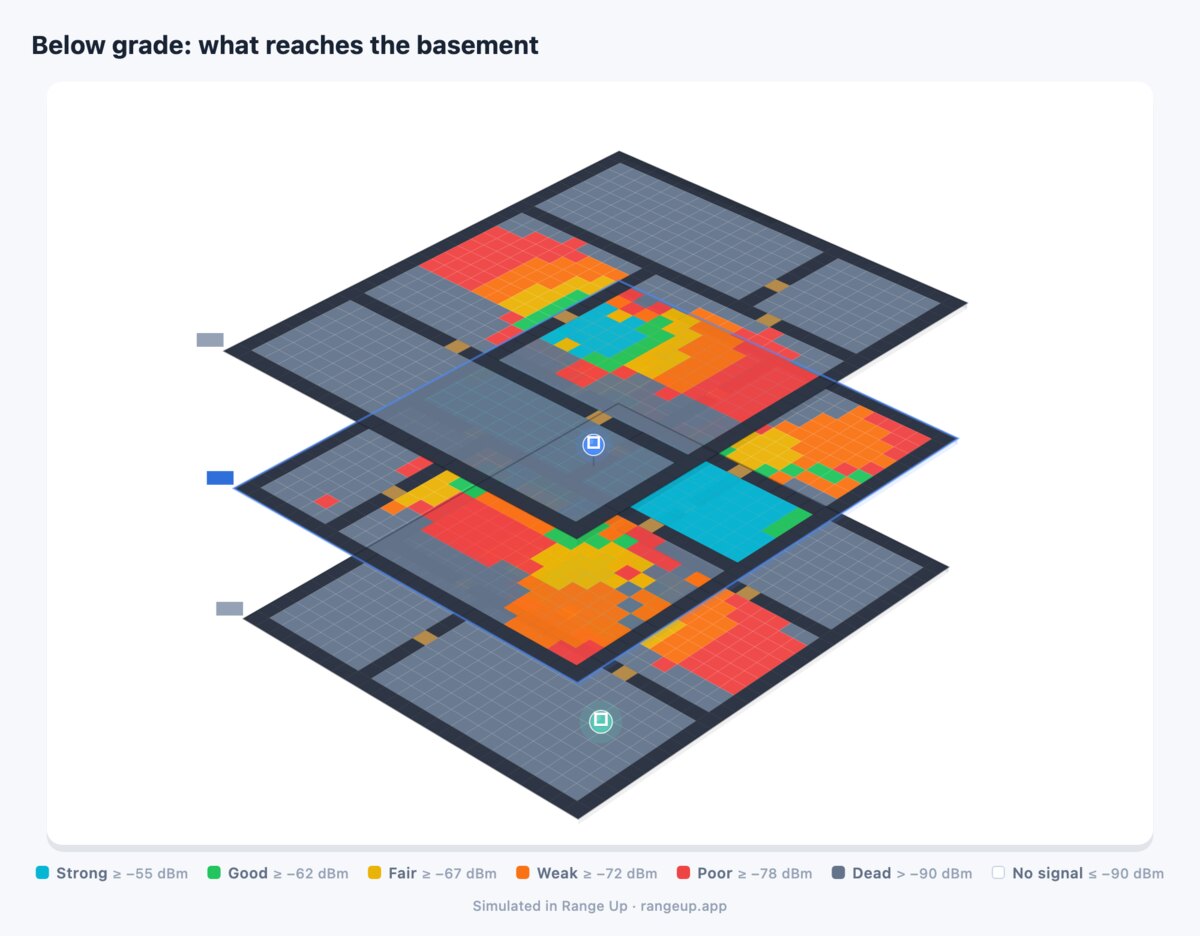

Three things stack up down there, and they compound.

The floor is not a wall. An interior wall is a few inches of low-density material. The floor between the main level and the basement is a structural assembly: subfloor, joists, sometimes a poured topping, often a finished ceiling underneath. On a garden-level or slab build it may be four to eight inches of concrete with steel in it.

Below grade means no help from outside. Rooms above ground pick up signal from paths you never think about — out a window, off the neighbor's siding, back in through another. A basement is a concrete box surrounded by soil. Nothing comes back in.

The ceiling is where all the metal lives. Ductwork, water pipes, gas lines, electrical runs, cable trays, and in finished basements a layer of foil-faced insulation. The mechanical trunk usually runs down the center of the house, which is exactly where you would like the signal to come through.

Every figure there is a typical range you can plan against, not something anyone measured in your house. The comparison that matters is the first row against all the others.

If your basement also has masonry partition walls or a block foundation splitting it into rooms, the per-wall numbers for that are in the guide to Wi-Fi in brick and concrete homes.

The stairwell is the signal path#

A stair opening is a hole in the floor several feet wide. Compared with 20 dB of slab, it is nearly free. That single fact sets the whole layout:

• Signal enters the basement at the bottom of the stairs and spreads outward from there. Strength falls off with distance and with every partition wall it then crosses, so the far corner of a finished basement is a second problem, not the same one.
• Line of sight to the opening is what matters upstairs. An extender at the head of the stairs, out in the open, feeds the stairwell. The same extender ten feet away around a corner does not.
• A door at the top of the stairs is expensive. A closed solid-core door costs roughly 4–6 dB, and it sits at the exact pinch point of the only good path. Leaving it open, or swapping it for a glazed or louvered door, is the cheapest fix in this article.
• An enclosed stairwell behaves like a chute. Signal travels down it well, then has to escape through a doorway at the bottom. With a door there too, close both and you have sealed the basement.

Walk-out basements and large egress windows change this picture: they add a second, above-grade path, and a node near a ground-floor window on that side sometimes beats anything coming through the floor.

Where the extender actually goes#

There are only two serious candidate zones, and they trade off against each other.

Zone A — head of the stairs, upstairs. Safe backhaul: the extender is on the router's floor with only interior walls in between. Weaker coverage, because everything it delivers has to make the trip down the stairwell.

Zone B — bottom of the stairs, in the basement. Much better coverage, because it radiates horizontally into the space instead of vertically through a floor. Riskier backhaul, because the extender itself now has to hear the router through the stairwell.

Zone B wins whenever it can get a solid link, which is more often than people expect — an outlet at the foot of the stairs often sits in the strongest spot in the basement. Work through it in order:

1. Nominate one area. The desk, the couch, the treadmill. Not "the basement."
2. Fix the router first if it is in the wrong place. If the whole house is weak, an extender is treating a symptom — start with getting the router itself in a better spot.
3. Stand at the head of the stairs and find outlets within line of sight of the stair opening, at waist height or higher, not behind a bookcase.
4. Then go to the foot of the stairs and find the outlets there. Note which of them can still "see" up the flight.
5. Test the backhaul at each candidate before you judge the coverage. You want the router link to be strong at the extender, which in signal terms is the -60 to -67 dBm window explained in how far out an extender can go.
6. Prefer the lowest candidate that still passes step 5. Every step down the stairs buys coverage that no amount of upstairs positioning will.
7. If the unit has external antennas, angle one toward horizontal when pushing signal down a stairwell. Vertical antennas radiate outward, not downward.
8. Test where you sit, doing what you do. A speed test at the bottom of the stairs proves nothing about the far corner.

Ducts, mechanicals and finished ceilings#

In an unfinished basement, the joists are open and you can see exactly what the signal faces. Metal ductwork reflects rather than absorbs: a trunk duct running the length of the house casts a long shadow with hard edges. Same for the cluster of furnace, water heater and electrical panel — expect a dead spot directly behind that corner. The upside: you can see the gaps and aim through them.

In a finished basement, the drywall ceiling only adds 3–6 dB, but it hides everything. Two details matter more than the drywall:

• Drop ceilings with a metal T-bar grid cost little themselves, but the void above is full of the same ducts and pipes.
• Foil-faced rigid insulation on the ceiling or the rim joists is effectively a metal sheet. If your basement was insulated during a retrofit, this alone can explain why nothing gets through the floor no matter where you put the extender.

Then the room dividers. Older basements use concrete block to separate utility room, storage and finished space — 10–16 dB each at 5 GHz. A basement with three block partitions is not one coverage problem, it is three.

When an extender is the wrong tool#

Here is where honesty beats optimism. With good placement, a single extender typically takes a basement from unusable — the high -80s dBm, nothing holding a connection — to roughly -65 to -72 dBm near the stairs, with 30–80 Mbps that falls off as you move away. That is fine for streaming, browsing and smart devices.

It is not fine if any of these apply:

• The basement is a home office, a rental suite or a gaming setup that needs consistent low latency and real upload bandwidth.
• The floor is a reinforced slab and the stairwell is enclosed with doors at both ends.
• The finished area is large and split by block walls, so one node cannot cover it regardless of backhaul.
• Every candidate outlet, upstairs and down, shows a weak link back to the router.

In those cases stop repeating the signal and start carrying it:

• Powerline is unusually good here. The electrical panel is almost always in the basement, so the run from an upstairs outlet down is short and often on the same circuit — the conditions powerline actually likes. Expect 50–200 Mbps on a good pair, far less across circuits or through a GFCI or AFCI outlet, so buy where you can return it. Where powerline beats a repeater, and how it fails covers the failure modes.
• A basement is the easiest place in the house to run Ethernet. The joists are open, the drop from the room above is a single hole, and one wired access point at the bottom of the stairs will outperform any wireless plan on this page. If coax is already down there — and it usually is, because that is where the service enters — a pair of MoCA adapters reuses it as a several-hundred-megabit backbone without touching the drywall. See running Ethernet or reusing the coax for MoCA.

One case worth naming: if your router is already in the basement, you do not have a basement problem, you have a whole-house one. The service enters down there, so that is where the router got installed, and every floor above now pays the slab penalty. Moving the router up a level — or leaving the modem put and running a cable to an access point upstairs — fixes more rooms than any extender will. The stairwell logic used in a two-story house applies here, just inverted.

Planning it before you buy#

A basement resists guesswork, because the answer moves by 10 dB every few feet and the ceiling gives away nothing about why. Range Up handles multi-floor homes for free, in 2D or 3D, so the basement becomes its own level beneath the main floor: draw both, pick the material preset the build matches, raise the wall and floor loss values to suit block partitions and a joist floor, and leave the router exactly where it stands today. The heatmap then reports the basement room by room, so Zone A and Zone B — head of the stairs and foot of the stairs — can be weighed against the corner you actually use, the desk or the treadmill or the couch, with nothing plugged in and nothing bought. A negative result is worth as much: when the best position on the plan still leaves that corner short, the next dollar belongs in a powerline pair or twenty feet of Cat6, and you learned it before the extender left its box. Plan the basement first.
