Where to Place a Wi-Fi Extender: The Halfway Rule and Where It Breaks
The halfway rule is right about half the time. Here is the version that works: put the extender where the router still reads -60 to -67 dBm, and count walls.
Almost every extender manual says the same thing: put it halfway between the router and the dead zone. That advice is not wrong, exactly — it is just measured in the wrong unit. Halfway in feet is a guess. Halfway in signal is an answer, and the two are rarely in the same place.
Here is the version that survives contact with a real house.
What an extender actually does#
A wireless extender is a repeater. It listens to your router, then rebroadcasts what it heard. That single sentence explains most placement failures:
- It can only repeat what it hears clearly. Put it too far from the router and it faithfully rebroadcasts a weak, error-prone signal. You get bars in the dead room and nothing usable behind them.
- On a single-radio extender, every packet is sent twice — once router-to-extender, once extender-to-device — on the same channel. That is where the familiar "extenders halve your speed" rule comes from. It is roughly true for single-radio units, and mostly avoided by dual-band units that reserve one band for the router link, which typically give up 10 to 30 percent per hop instead.
- It does not add coverage in every direction equally. It extends the bubble outward from wherever you plug it in, so the direction it faces on your floor plan matters more than its spec sheet.
The rule that actually works#
Put the extender at the last point where your phone still sees the router at about -60 to -67 dBm.
That is the whole rule. Everything else is a way of finding that point without instruments.
Why that window? Below roughly -67 dBm, 5 GHz link rates start collapsing and retransmissions climb. Above about -55 dBm you are wasting range you could have spent pushing further into the house. The -60 to -67 band is the sweet spot where the extender still has a fast, clean backhaul but is as far into the problem as it can get.
In a typical home this lands the extender closer to the router than the midpoint — often only one room away, not in the hallway you imagined.
How to find that point without a meter#
You do not need a site survey tool. Three methods, in order of accuracy:
- Read the extender's own indicator. Nearly every extender has a link-quality LED or an app screen showing signal to the router. Plug it in, walk it outlet by outlet, and stop at the last outlet that still shows a strong (not "fair", not amber) link.
- Use a phone. Android exposes RSSI directly in Settings → Wi-Fi → network details, or in any analyzer app. On iOS the OS does not expose RSSI to third-party apps, so use the router's own admin page or app, which usually lists each connected client's signal.
- Simulate it on a floor plan. Sketch the layout, set the material preset to your construction, mark the router, and read the predicted signal at each candidate outlet. This is the only method that lets you compare five spots without physically walking to each one — and it is what Range Up was built for.
Count walls, not feet#
Distance matters far less than what is in the way. Free-space loss over 30 feet indoors is small. A single dense wall can cost you more than that entire 30 feet.
| What the signal passes through | Typical loss at 5 GHz | Practical translation |
|---|---|---|
| Open doorway or clear line of sight | 0–3 dB | Barely noticeable |
| Drywall stud partition | 3–6 dB | A small step weaker |
| Interior wall with studs, wiring and plumbing | 5–8 dB | One full "step" weaker |
| Solid wood door | 4–6 dB | Close the door and you feel it |
| Brick or cinder block | 10–16 dB | Cuts usable range to about a third |
| Reinforced concrete floor | 15–25 dB | Often a hard stop |
| Mirror, foil-backed insulation, metal panel | 20–30 dB+ | Treat as a wall you cannot pass |
The practical consequence: a longer path through open doorways beats a shorter path through masonry. When you are choosing between two outlets, draw the straight line from the router to each one and count what it crosses. The outlet that is ten feet farther away but has a clear line down the hallway will usually win.
For the full attenuation table and how to identify your own wall types, see what each building material costs you in dB.
Height, orientation and the things around it#
Once you have narrowed it to a couple of outlets, these adjustments are worth a few dB each:
- Height. Waist height or above. Floor-level outlets put the extender in the noisiest, most obstructed layer of the room — furniture, appliances, human bodies. A short extension cord that lifts a plug-in unit onto a shelf is a legitimate fix.
- Out in the open. Not behind the TV, not inside a media cabinet, not in the closet with the water heater. Metal enclosures are the worst offender in the average home.
- Away from water and metal. Aquariums, water heaters, fridges and radiators all absorb or reflect 2.4 and 5 GHz badly.
- Antenna orientation. If the unit has external antennas and you are covering the same floor, keep them vertical. If you are trying to reach the floor above or below, angling one antenna 45° or horizontal spreads more energy vertically.
Where the halfway rule breaks#
Three situations where "halfway" gives you the wrong answer entirely.
1. The dead zone is up or down, not across#
Signal through a floor takes a different path than signal along one. A concrete slab can cost 20 dB; a timber floor with a stairwell nearby costs almost nothing if the stairwell is the path. In a multi-story home, the best extender position is very often on the landing at the top of the stairs, not in the room below the dead zone. See placement on a two-story floor plan.
2. There is no outlet where the rule points#
Real houses do not put outlets where physics wants them. When the ideal spot has no outlet, work outward: pick the nearest available outlet on the router side of the ideal point, never the far side. Being 10 feet too close costs you a little reach. Being 10 feet too far costs you the backhaul.
3. The dead zone needs real throughput#
If the far room is a home office pushing video calls and large uploads, or a 4K TV, a single-radio extender halving throughput may not clear the bar even with perfect placement. At that point the honest answer is running a cable or reusing the coax, or a mesh node with a dedicated backhaul radio — placement cannot create bandwidth that never arrived.
A repeatable placement procedure#
- Fix the router first. Half of all "I need an extender" problems are actually router placement problems, and moving the router is free.
- Identify the one room that matters most. Not "everywhere" — the specific room whose failure made you search for this.
- Draw the straight line from router to that room. Note every wall it crosses and what each is made of.
- List the outlets that sit on or near that line, in the middle third of it.
- Pick the outlet furthest along the line that still has a strong link back to the router — the -60 to -67 dBm window.
- Plug in, wait two minutes for the link to settle, then test in the dead room, not next to the extender.
- If the dead room improved but is still marginal, move the extender one outlet toward the router and retest. This is counterintuitive and it is usually the fix.
How to do this without walking around#

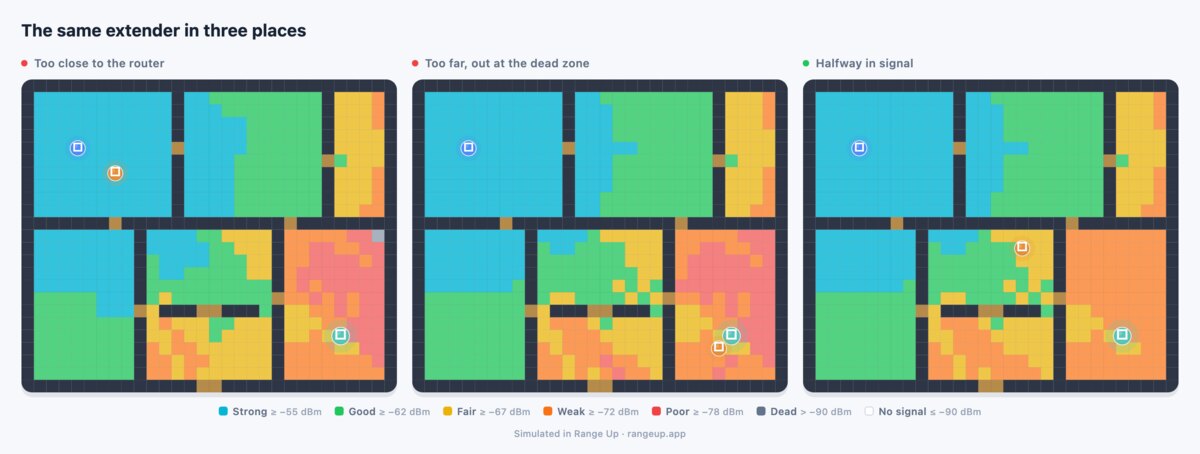

Steps 3 to 5 are the ones you can do sitting down. Range Up is a floor-plan simulator: trace the rooms, set the material preset to the construction you genuinely have, and pin the router to the spot it really occupies. Because the model is attenuation-aware, the halfway point it finds is halfway in signal rather than halfway in feet — which is why it so often puts the marker one room short of the outlet you had in mind. Mark the room that made you search as the target, run the extender step, and read the before and after coverage maps against each other.
A disappointing result is worth as much as a good one. If no position on the plan lifts the problem room by more than a few decibels, the money belongs in a mesh kit sized against your layout or a cable, and that verdict cost you nothing. The longer version of this method is the step-by-step placement walkthrough.
Frequently asked questions#
Should the extender go closer to the router or closer to the dead zone?
Closer to the router than you think. The extender needs a clean link back to the router to be useful, so err toward the router side of the midpoint — typically where the router still reads -60 to -67 dBm.
Can a Wi-Fi extender be too close to the router?
Yes, but it is a much smaller mistake than being too far. Plugged in the same room, the extender simply overlaps coverage you already had and adds nothing. It will not break anything; it just wastes the device.
Does a Wi-Fi extender slow down my internet?
On a single-radio extender, devices connected through it typically see about half the throughput they would get from the router at the same signal level, because each packet is transmitted twice on the same channel. Dual-band extenders that reserve one band for the router link avoid most of that penalty.
Should I plug the extender into a power strip or extension cord?
An extension cord that raises the unit off the floor is generally a net win — the height gain outweighs anything the cord costs. Avoid stacking it inside a crowded strip behind furniture, which reintroduces the shadowing you were trying to escape.
How do I know if the extender is in the right place?
Test in the problem room, not next to the extender. You want a stable connection during a real activity — a video call, a 4K stream — and a signal reading that improved by at least 10 dB compared with before. If it improved by 2 dB, the spot is wrong or an extender is the wrong tool.
Do I need one extender or two?
If one well-placed extender leaves a second area still weak, the answer is usually not a second extender chained off the first — that halves throughput again. Two extenders on separate legs from the router can work; what a chain actually costs you covers the case where it does not.
