Wi-Fi in the Garage: Placement for an Attached or Detached Space

Your garage is twenty feet from the router and it behaves like a different building. That is not bad luck. The wall between a house and its attached garage is built to slow a fire down, and the materials that do that job — thick gypsum, masonry, a steel-clad door — happen to stop 5 GHz almost as well. Then you park a two-ton steel box in the middle of the room.

Here is how to plan the garage properly, and where to stop pretending an extender will do it.

What the garage wall is actually made of#

The separation between living space and an attached garage is a rated assembly, not an ordinary partition. Depending on when and where the house was built, that usually means thicker gypsum board than the rest of the house, frequently two layers, sometimes a masonry wall, and a solid-core or steel-clad door built to resist fire for around twenty minutes. Every one of those choices costs you signal.

Treat those as typical ranges, not gospel — the full material table and how to identify your own walls live in working out what your walls are built from. Two things in that list are worth calling out because they turn a hard room into an impossible one.

The corollary is that the doorway is the only cheap path you have. An open interior door costs 0–3 dB instead of the 10–20 dB the wall around it costs. That is exactly why the garage seems fine while you are carrying groceries through and dies the moment the door swings shut behind you — and that door is usually self-closing, so it spends almost its whole life shut. Plan for the closed-door number. It is the one the garage lives with.

Metal, not distance, is what beats you#

A garage is the most metal-dense room in a house, and metal does not attenuate signal politely — it reflects it.

• The car. A vehicle is a steel shell with glass panels. Parked between the interior door and the workbench, it is a wall at chest height. Two cars in a two-bay garage make a continuous one. This is also the reason garage coverage is unstable: an empty bay at 2 p.m. and a full one at 7 p.m. are two different rooms, and the second one is where you actually want to use your phone.
• The garage door itself. Signal does not come in from the driveway through a sectional steel door. If you have a wooden or a glass-panel door, you have a genuine second opening; most people do not.
• The rest of it. Chest freezer, water heater, steel shelving, a rolling tool chest, the metal duct running along the ceiling, mesh reinforcement in the slab.

The practical answer to all of this is height. Get the radio above the roofline of a parked car — around seven feet on the house-side wall, not on the bench next to the vise. That single change often buys more than moving the unit ten feet closer.

Where the extender goes for an attached garage#

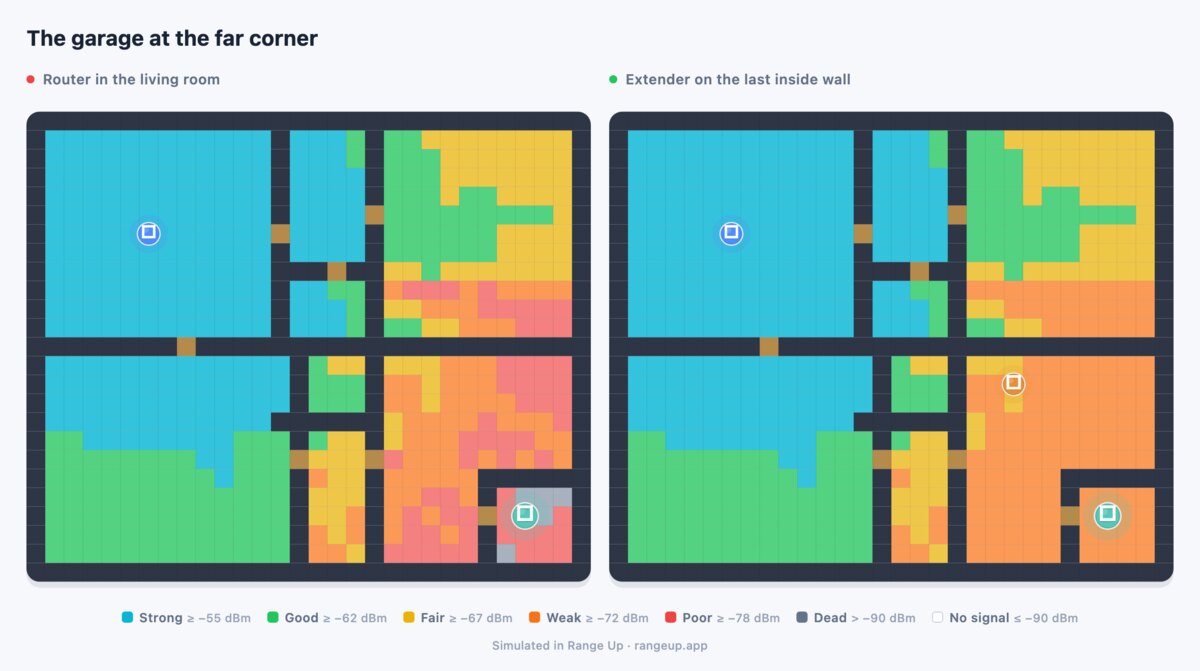

The instinct is to plug the extender into the garage. Do not. An extender in the garage is on the wrong side of the wall you are trying to beat; it will hear the router poorly and rebroadcast that poor link with confidence. Put it inside the house, on the house side of the rated wall, in line with the doorway, at the point where the router still reads roughly -60 to -67 dBm. That backhaul window is the whole basis of extender placement — the reasoning behind it is in why an extender belongs on the strong side of the wall.

Then work through this in order:

1. Decide what the garage has to carry. A freezer sensor and a door opener are a completely different problem from a 4K TV in a converted bay. Write the answer down before you shop.
2. Stand where the device will actually live — at the bench, at the charger, at the camera mount — and look back toward the house. Find the path with the fewest metal objects on it. In nearly every garage that path goes straight through the interior door opening, not through the shared wall.
3. Pick the outlet on the house side of that doorway, waist height or higher, out in the open. Not behind the dryer, not inside the utility closet.
4. Check the backhaul from that outlet. If the router reads worse than about -70 dBm there, move one outlet back toward the router. A weak backhaul is the one mistake an extender cannot recover from: it rebroadcasts the errors at full strength.
5. Test with the fire door shut and the cars parked where they normally park. Then walk to the far corner of the garage, not the doorway.
6. Judge it honestly. If the garage improved by 2 or 3 dB, the wall won. Go to the wired options below rather than buying a second extender.

What the garage actually has to carry#

Almost everything in a garage asks for very little bandwidth and a lot of stability:

• Garage door opener, EV charger, water leak and freezer sensors: fractions of a Mbps, and nearly all of them are 2.4 GHz-only devices that associate once and then sit at the edge of coverage forever. When they fall off nightly, the cause is usually marginal signal rather than the device — that pattern is covered in smart home devices dropping off Wi-Fi.
• A 1080p security camera: roughly the same upstream as an HD video call, 1.5–3 Mbps, while it is actually recording.
• A workshop speaker or a podcast on a phone: 0.1–0.5 Mbps.
• A converted bay with a TV: 5–8 Mbps for 1080p, 15–25 Mbps for 4K. This is the only garage use case that genuinely needs throughput, and it is the one where a single-radio extender's roughly 50% penalty starts to matter.

None of that is bandwidth-hungry. What the garage needs is a link that still holds at -67 dBm or better at the device, with both bays full.

When the garage is detached#

Now the arithmetic changes completely. A detached garage puts two exterior walls and a stretch of yard between you and the router. Start from a strong indoor reading of around -45 dBm near the router. Getting out of the house costs 6–12 dB through timber, sheathing and siding, or 10–16 dB through brick. The open yard costs about 6 dB per doubling of distance, and the garage's own exterior wall takes the same toll again on the way in. Forty feet of yard between two ordinary exterior walls lands you around -75 to -85 dBm before you have accounted for a single object inside — connected, and barely working.

Ranked by how well they actually work:

1. A buried or conduit-run outdoor-rated Ethernet cable, with a real access point in the garage. No wireless penalty at all, and the garage gets full-strength coverage of its own. This is the right answer far more often than people want it to be.
2. An outdoor-rated access point mounted under the house eave, aimed at the garage, with genuine line of sight. This works well when a window or a door on the garage faces the house. Mounting height, ingress rating and cable entry are worked through in backyard and patio Wi-Fi.
3. A point-to-point wireless bridge between the two buildings, which is the standard fix once the distance gets serious — see getting signal across the yard to a garden office or shed.
4. Powerline, and only where the garage circuits come off the main panel with nothing exotic in between. Anything that breaks the copper path — a subpanel, a long buried feeder, a GFCI breaker — usually guts the link, so buy it somewhere that takes returns and test before you plan around it. Powerline versus a Wi-Fi extender has the conditions under which it wins.
5. An indoor plug-in extender pointed at a window. The option people buy first, and the one that almost never works here: it halves throughput while fighting two exterior walls. Past about thirty feet of separation, skip straight to options 1 through 3.

Gear that survives a garage#

One detail that gets skipped: consumer plug-in extenders are typically specified for roughly 32–104°F (0–40°C) operating temperature. An uninsulated garage in January or a closed one on a July afternoon sits outside that window, and the failure is seasonal rather than immediate — everything works all spring, then drops out on the first hot day. Sawdust in the vents accelerates it.

If a radio has to live out there, use hardware rated for a wider range. Outdoor-rated access points tolerate roughly -22 to 140°F, and mounting one inside a detached garage is a perfectly reasonable use of the money.

Plan the garage before you buy anything#

The garage is the room where guessing is most expensive, because the difference between the right outlet and the one three feet away can be the fire door. Sketch the layout in Range Up, set the material preset to match how the house is built and push the wall loss up toward what a rated separation really costs, draw the garage as its own space, and drop the router on the spot it actually occupies. Then mark the garage as the space that has to improve and let the app search the house side of that wall for the outlet that does the most. Setting the before map beside the after map is how you find out what the fire door is really costing you — and when the honest answer is a cable instead.

Start from a starter layout and the garage is modeled in a few minutes. Draw the garage and the wall beside it, or read how extender placement works first.
