Ranch and Single-Story Homes: Coverage Across a Long Footprint

The router is in the front office because that is where the coax comes in. The primary bedroom is at the other end of the house, 55 feet and four interior walls away, on the same floor. Nothing here is tall, nothing is concrete, and the back bedroom still cannot hold a video call.

Ranches fail differently from two-story houses, and most placement advice was written for two-story houses. Here is the version for a long, low footprint.

A ranch has no vertical shortcut#

A two-story home folds half its square footage directly above the other half. That is quietly generous to Wi-Fi: the upstairs rooms sit diagonally close to a centrally placed router, and one timber floor costs far less than three interior walls. A ranch spends everything on one plane.

Run the numbers on 1,900 square feet. Split over two floors as a 30-by-32 footprint, the longest line inside the house — corner to opposite corner, floor to floor — is about 45 feet. Laid out on one level as 62 by 31, the longest line is about 69 feet. Same house, same walls, 24 more feet of it, and every one of those feet lands on the horizontal axis where the interior walls are.

Then check that against what one router can do. Down a clear path through one or two ordinary interior walls, a well-placed router holds a usable 5 GHz signal — better than about -67 dBm — out to roughly 50 to 75 feet. The bedroom axis of a ranch is not that path: it crosses four or five walls at 5 to 8 dB each, which pulls the usable radius in to something more like 25 to 35 feet. In a 62-foot ranch with the router at one end, the last 25 to 30 feet of the house sits outside that circle. There is no arrangement of antennas that changes the arithmetic.

Ranches are also wall-rich exactly where it hurts. The classic plan is a public end, a kitchen in the middle, and a bedroom wing hung off a spine hallway, so every one of those walls lands on the single line that matters. Wall materials and what each one costs has the figure for each.

Central beats high in a single-story home#

The standard advice is "central and high". In a ranch, the "high" half is nearly worthless and the "central" half is worth double.

Height pays for two things: getting over furniture, and crossing a floor. In a single-story home there is no floor to cross. Lifting the router off the carpet onto a table at 4 feet is still worth 3 to 6 dB because it clears sofas, appliances and people. Going from 4 feet to 7 feet on top of a bookcase buys you almost nothing.

Distance and walls behave differently. Doubling the distance costs about 6 dB in open air, and indoors it costs more than that, because the longer line usually collects another wall on the way. So halving the worst-case path is worth 6 dB at the floor and typically far more, since the shorter line drops walls out of the path as well — more than any height adjustment, more than any antenna you can screw on. In a ranch, moving the router along the long axis is the highest-value change available to you.

Rule-of-thumb figures for drywall-and-stud construction, not measurements we took. Notice that raising the router moves the far bedroom by about 3 dB, while moving it 20 to 30 feet along the axis is worth 15 to 22 dB.

The usual objection is the tether: the coax or fiber lands where it lands. Two things loosen it. A longer coax run costs a few dollars and can move a modem 25 feet. Better, leave the modem at the entry and put the router on a Cat6 patch cable running 30 or 40 feet to the middle of the house — the router is the thing that needs to be central, not the modem. How far the router can realistically move covers the practical limits.

Where a single extender goes in a 60-foot house#

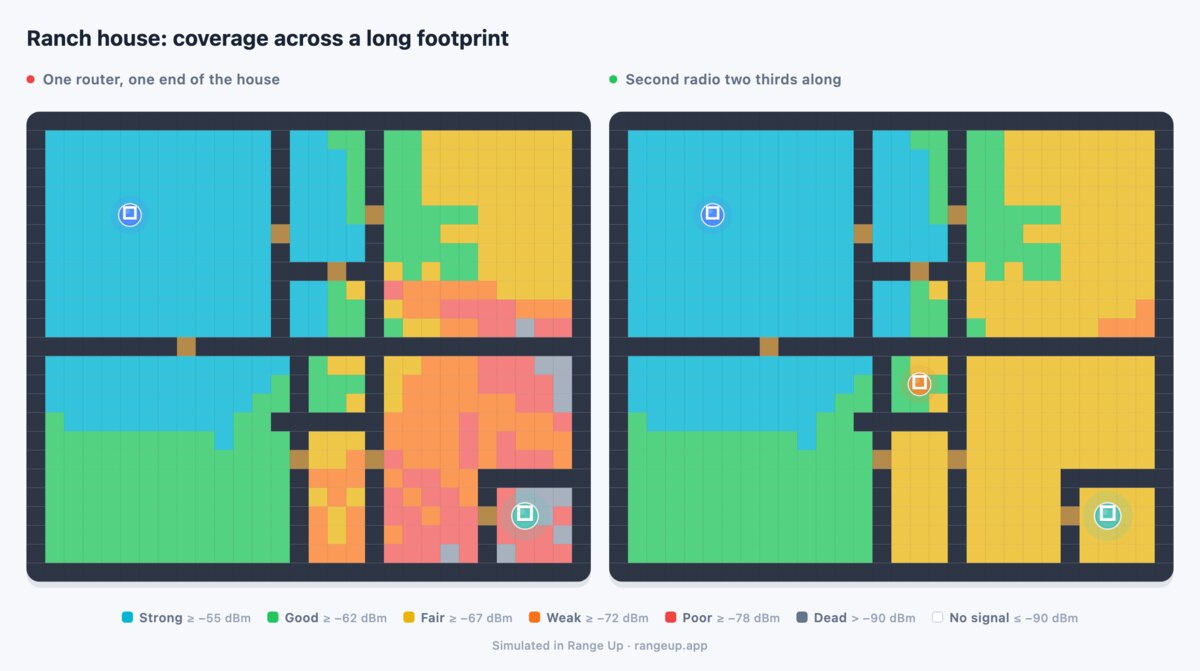

Assume the router has moved as far as it can and the bedroom wing is still weak. One extender, placed well, covers most 1,800 to 2,200 square foot ranches.

The rule is the same one that governs extenders everywhere: put it at the last point on the line to the room that matters where the router still reads about -60 to -67 dBm. The reasoning is in why halfway in feet is the wrong measure.

What is ranch-specific is where that lands. In a long, single-story plan it is almost always the mouth of the bedroom hallway, not inside it. Three reasons:

• The hallway is the last piece of open circulation in the house. Illuminate its entrance and the open bedroom doorways off it each become a first doorway rather than a fifth obstacle.
• Once you are inside the hallway, the extender has already paid the wall that was hurting it. Its own link back to the router is now weak, and a repeater with a weak backhaul rebroadcasts a strong, error-prone signal that your phone will happily cling to.
• Hallway outlets are usually in open wall, at a sensible height, away from the kitchen.

That last point matters more in a ranch than anywhere else, because the kitchen usually sits between the living end and the bedroom wing. The refrigerator, range hood, microwave and any stainless backsplash form the single worst run of the house, and a hallway closet with the water heater or the furnace in it is just as opaque. If your straight line goes through the appliance wall, look for a route through the dining room instead — a longer path through open air beats a shorter path through a fridge.

Height and orientation are worth a few dB on top: waist height or above, out in the open, external antennas vertical.

The attic access point: a ranch-only option#

A ranch is the one house shape where the attic genuinely solves coverage. Every room is directly below it, one ceiling away, at a steep angle instead of through four walls. A single unit above the middle of the house can cover a 62-foot footprint that no wall-level position can reach.

It is also the option with the most ways to go wrong. Check three things before you plan around it.

1. Look at the insulation facing. Plain fiberglass batts or blown cellulose over a drywall ceiling cost you roughly 4 to 9 dB downward in total — acceptable. Foil-faced batts, or a radiant barrier stapled under the roof deck and wrapped down the joists, run 20 to 30 dB or more and end the idea. Shiny means stop.
2. Find the HVAC trunk. Ranch attics usually carry a large sheet-metal duct running the length of the house, often right over the hallway. Anything directly under it is shadowed. Mount to one side of the trunk, not on top of it.
3. Check the temperature rating. Attics reach 120 to 150 °F in summer, and most consumer routers, extenders and access points are rated to about 104 °F. A unit that is not rated for it will throttle, drop clients, or reboot on the hottest afternoon of the year.

For most people the better version of this idea is not the attic at all: mount a flush ceiling access point in the hallway ceiling, fish the cable through the attic, and leave the electronics in conditioned air. Either way, it is a wired job — feeding a node over Cat6 or coax covers running one line or reusing an old router in access point mode, and one wired unit in the middle of a ranch usually beats two wireless ones.

When one unit is not enough#

A long footprint runs out of router faster than its square footage suggests, so here are the cases where placement is not the answer.

• Over about 2,200 square feet on one floor, or beyond about 70 feet end to end, plan two broadcast points from the start rather than adding a second repeater behind the first. Each extra wireless hop costs throughput again. Node counts, and why nodes should form a line rather than a star in a long house, are in how to space mesh nodes in a line.
• Plaster on metal lath. Many mid-century ranches have it. Expanded metal lath behaves like a screen at 5 GHz, and a house full of it can lose most of the band at the first interior wall. If 5 GHz dies one room from the router in an older ranch, this is usually why, and no placement rescues it — you are wiring or accepting 2.4 GHz.
• A wing set at 90 degrees. An L-shaped or U-shaped ranch is a corner problem, not a length problem, and the answer moves to the inside of the corner rather than the middle of the long axis.
• A detached garage or shop across the yard. No indoor extender placement reaches it reliably. That needs its own approach — see Wi-Fi in the garage.
• Full bars and slow anyway. If the far bedroom shows a decent signal and still stutters, the problem is not coverage and an extender adds nothing.

Planning a ranch before you buy anything#

A single-story plan is the fastest kind to sketch, and the one where seeing the whole footprint at once changes minds: the gap between the front office and the hallway mouth is obvious on a coverage map and invisible from inside the room.

Draw the footprint in Range Up, pick the material preset that matches the construction — nudging the wall loss value if the spine and bedroom partitions are heavier than drywall — and put the router in the front office where the coax actually lands. Then slide it along the long axis on the plan — office, living room, hallway mouth — and watch the far bedroom change color at each stop. That experiment takes a minute on a drawing and an evening on foot. If the hallway-mouth router closes the gap, you have saved the price of the extender. If it does not, mark the far bedroom as the room that has to work and let the automatic search sort the hallway outlets for you, then read its pick against your current coverage. Draw your single-story footprint, or read the extender placement guide if you have not settled on hardware yet.
