Why the Upstairs Bedroom Always Has the Worst Wi-Fi
Slow Wi-Fi in the upstairs bedroom is geometry: a diagonal path through the floor, two walls and a mattress. The landing fix, and how to test it before buying.
The practical answer to slow wifi upstairs bedroom starts with the path between the router and the room that has to work.
The back bedroom upstairs is the farthest room from the router, on the wrong side of a floor, used at the hour when every neighbor is streaming, by someone lying down with their own body between the phone and the antenna. It is not unlucky. It is the predictable end of a chain of losses, and once you can name each link, most of them come off with one extender on the landing — or, sometimes, with nothing at all.
The path is longer than the floor plan says#

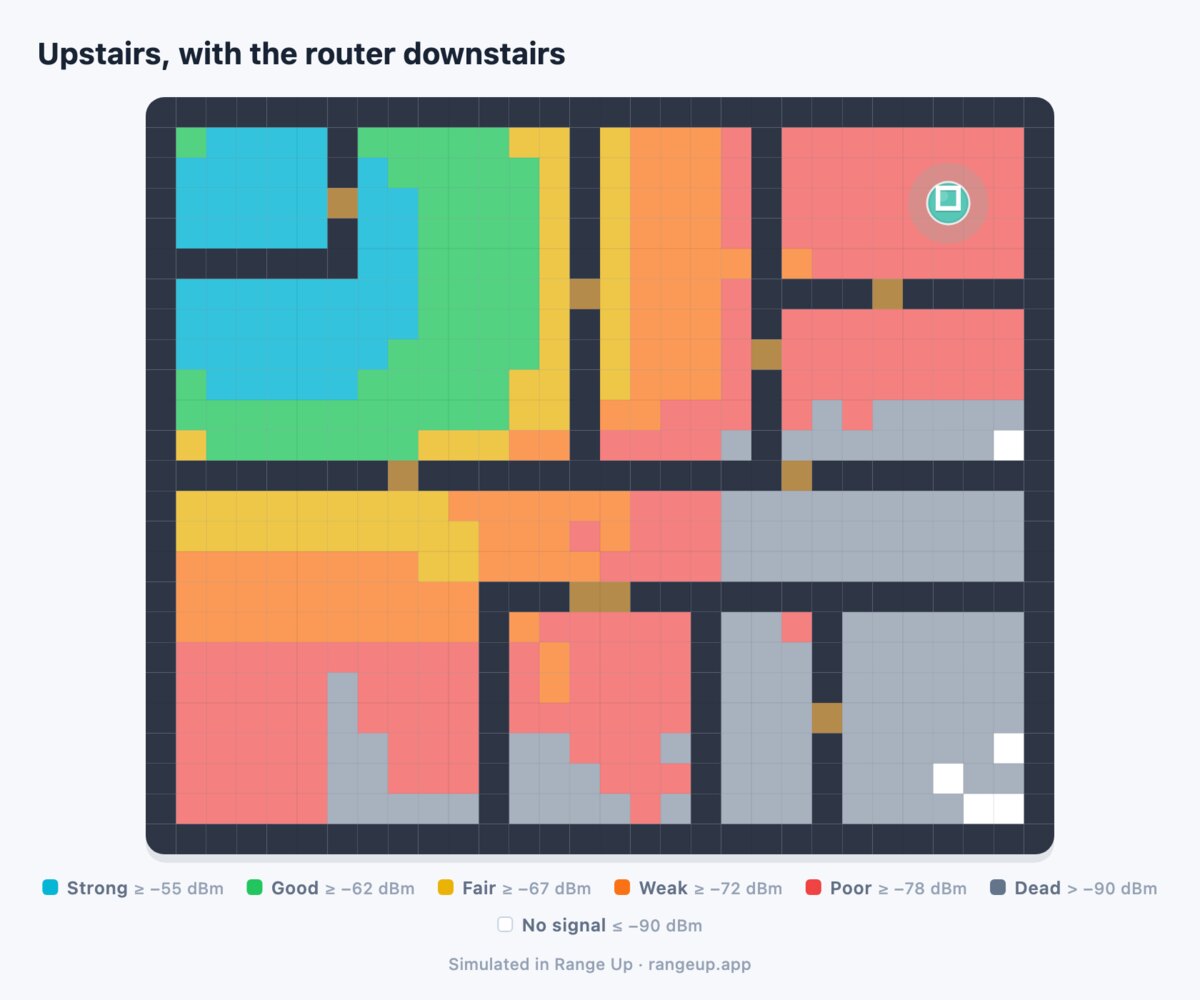

Open a floor plan and the upstairs back bedroom looks about 30 feet from the router. Add the height of a story and the straight-line distance becomes roughly 31 feet. That extra foot changes nothing. Distance is almost never what kills this room.
What kills it is the angle at which the signal crosses the floor. Stand in the room directly above the router and the floor between you is however thick it is — say a nine-inch joist assembly with subfloor and ceiling board. Walk to the far corner bedroom and the signal now hits that same floor at about 70 degrees off vertical, so it travels through a little over two feet of the same material to reach you. The floor did not change. Your position did.
The multiplier is simple geometry — divide by the cosine of the angle — and it gets ugly fast.
| Angle off vertical | Material actually crossed | Extra loss vs. straight down |
|---|---|---|
| 0° (room directly above the router) | 1.0x | None |
| 30° | 1.15x | About 1–2 dB |
| 45° | 1.4x | About 3–5 dB |
| 60° | 2.0x | Roughly doubles the floor's cost |
| 70° | 2.9x | Roughly triples it |
Then the bedroom adds its own losses#
Bedrooms are worse than the arithmetic suggests, for reasons that are specific to bedrooms.
They are placed last. The router lands wherever the coax or fiber enters, which is almost always the front of the house. Bedrooms go at the back and in the corners, by design.
You use them at the worst height and angle. A phone held over your face while lying down sits low in the room with a body beside it. A body costs 3–5 dB, and in bed you are on the wrong side of the device about half the time.
The furniture is unusually hostile. Mirrored closet doors are common in bedrooms and behave like sheet metal — treat them as a wall you cannot pass through. A packed closet absorbs a few dB. A wall-mounted TV with a metal back plate shadows everything behind it.
The landing outlet, and why it works#
The stairwell is a hole in the floor. Signal that would otherwise punch through a joist assembly at 70 degrees can instead travel up an open stairwell through air, losing almost nothing on the way.
That is the entire trick behind the landing outlet. Put the extender where it can see down the stair void and its link back to the router never crosses the joists at all. The bedroom leg then runs level — one or two stud walls and a door, nothing else. The most expensive line in the budget drops out of both halves of the trip.
Practical details that decide whether it works:
- In line with the stairwell, not around a corner. A corner outlet is a weaker version of the same trick, still worth testing.
- Waist height or above. Floor-level outlets bury the unit in furniture and baseboards.
- Not inside anything — not behind a cabinet door, not tucked under a metal banister.
- On the bedroom side of the landing, so the remaining walls are as few as possible.
How to tell whether an extender will actually help#
Two readings decide it. Take them before you buy anything.
- Fix the test spot. The pillow, or wherever you actually hold the phone. Not the doorway, which is often 10 dB better and has fooled a lot of people.
- Read the signal there. Android shows it in the network details; on iOS, the router's admin page lists each connected client's signal. Do it in the evening, when the room is at its worst.
- Read the signal at the candidate landing outlet. Same method, same evening.
- Compare the two. If the landing reads -60 to -67 dBm while the bed is worse than about -75 dBm, an extender has a credible backhaul. If the landing is worse than -70 dBm, do not buy one.
- If you go ahead, retest at the pillow after installing — same hour, same activity. Not standing next to the extender, which always looks excellent and proves nothing.
- If the gain is under about 5 dB, move the extender one outlet toward the stairwell and retest once. If it is still under 5 dB, an extender is not the right tool for this room and no further shuffling will change that.
Frequently asked questions#
Why is the Wi-Fi so slow in my upstairs bedroom?
Because the signal crosses the floor at a shallow angle rather than straight down, which can double or triple the amount of material it passes through, and then adds two interior walls and a closed door on top. Distance is rarely the cause — a far-corner upstairs bedroom is only a few feet farther in a straight line than the room directly above the router, but it can be 20 dB worse.
Where should I put an extender for an upstairs bedroom?
On the upstairs landing, placed so nothing blocks the line down the open stairwell, and at waist height rather than at the baseboard. Air is far cheaper to cross than a joist assembly hit at a shallow angle, so that spot buys a clean link back to the router and leaves only a wall or two between the extender and the bedroom. An outlet inside the bedroom is the common mistake, because a repeater cannot improve on the weak signal it receives.
Does a mattress block Wi-Fi?
A little. Innerspring and hybrid mattresses, box springs, metal frames and adjustable bases all contain steel that reflects some signal, but a coil layer is a partial reflector rather than a solid barrier, so expect a few dB rather than a wall's worth. It only matters in a room whose signal is already marginal, which upstairs bedrooms usually are.
Should I just move the router upstairs instead?
Only if it fixes more than it breaks. Moving the router upstairs trades the bedroom problem for a weak ground floor, so it makes sense when the upstairs is where people actually use devices and the downstairs devices are wired. In most homes, a central position on the lower floor plus one well-placed unit upstairs beats moving the router outright.
