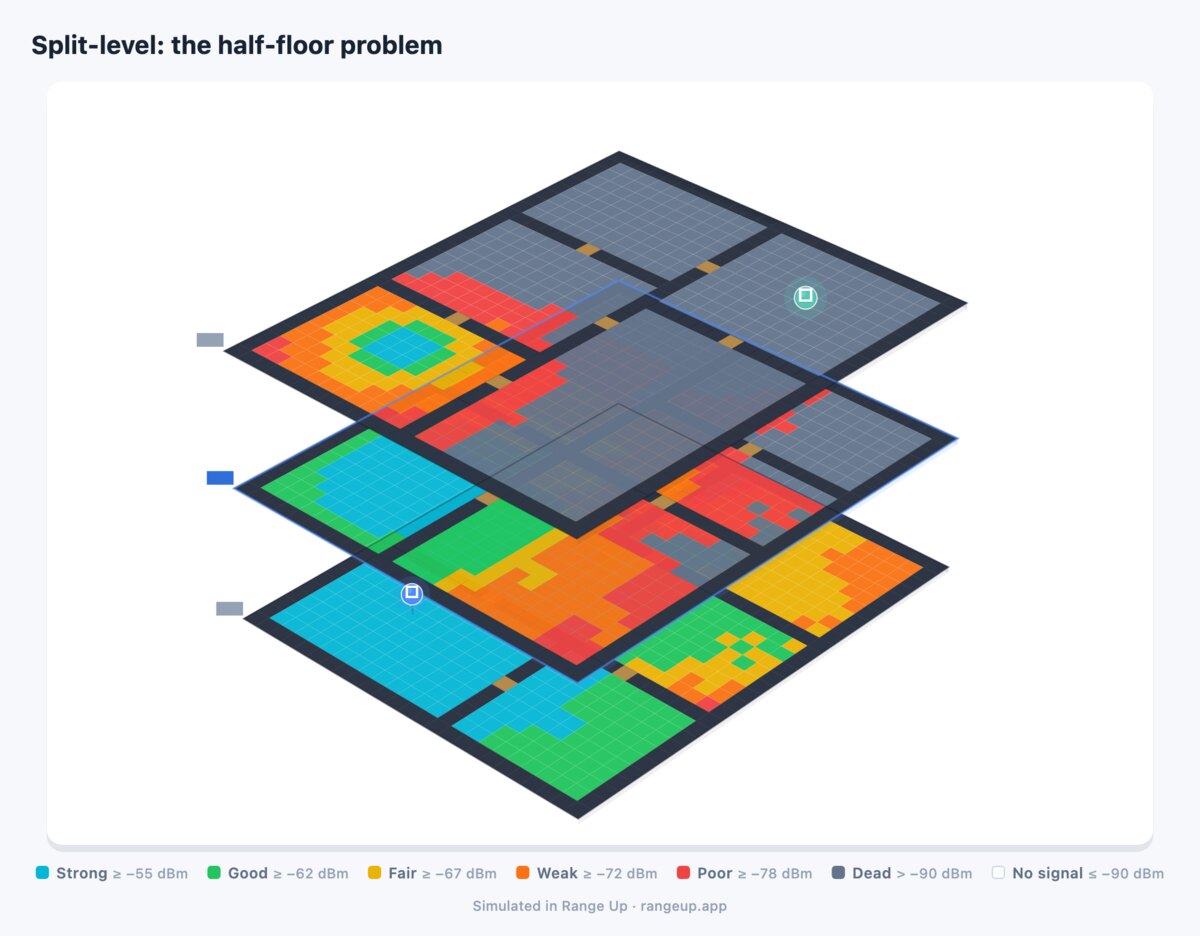

Split-Level Homes: Solving the Half-Floor Wi-Fi Problem

The router sits in the lower-level family room, next to the only coax outlet in the house. Two bedrooms upstairs are half a flight away and still cannot hold a video call. Every guide you have read says to put the router or the extender on the middle floor, and your house does not have one.

Split-levels are the layout generic placement advice quietly skips. Everything changes when floors sit half a story apart instead of a full one — and most of what changes is in your favor, once you know where to plug in.

Three shapes, all called split-level#

• Bi-level, also sold as a split-entry or raised ranch. Two levels. The front door opens onto a landing between them: half a flight up to the living space, half a flight down to the lower level. The lower level is typically 3 to 4 feet below grade, the upper level 4 to 5 feet above it.
• Tri-level. A main level at grade holding the kitchen and living room, a bedroom wing half a flight up, and a family room or garage half a flight down. The bedroom wing sits above the lower level, not above the main level.
• Four-level. A tri-level with a basement dug under the main level, giving you three short flights and four separate planes.

Two structural facts drive the rest of this article.

The vertical offset is halved. A full story runs roughly 8 to 9 feet floor to floor. A half-flight is 6 to 8 risers, about 4 to 5 feet. A device on the level above is physically much closer than the equivalent room in a two-story house.

Only part of each level has another level above or below it. In a tri-level the main level often covers a third to a half of the footprint and sits on a slab or crawl space. The shared floor plane — the expensive one, 6 to 12 dB through timber joists and subfloor — exists over only part of the building. Everywhere else the two levels are separated by air, a stair opening and a knee wall.

That second fact is the good news, and almost nobody uses it.

Why the middle-floor rule breaks#

The middle-floor rule is sound in a house where the floors stack: put the router in the middle and every room is at most one floor crossing away, which is the core of the three-story plan. Split-levels stagger instead of stack, so the rule has nothing to grip.

• A bi-level has no middle level. There are two levels and a foyer landing between them. There is no third plane to put anything on.
• A tri-level's middle level is beside the others, not between them. The main level is in the middle in elevation, but in plan it sits off to one side, with the bedroom wing hanging over the lower level at the far end. A router centered in the main-level living room can still be 25 to 35 feet of plan distance from the far bedroom.
• The genuinely central point is not on any level. It is in the stair core — short and wide in a split-level, not a narrow shaft through a thick floor.

The landing is the center of the house#

Put the extender at, or within a few feet of, the landing between two levels, at waist height or above. In a split-level this single move does three things at once.

1. Its link back to the router goes through open air. The path runs up or down the stair opening rather than through the joists. Aim for the target that governs extenders everywhere: the furthest position where the router still reads about -60 to -67 dBm, which is what the halfway rule really means.
2. It serves the level it is aiming at from nearly the same plane. From the upper landing, each bedroom is one or two stud partitions away at 3 to 6 dB each, instead of a floor crossing plus walls plus a closed door.
3. Height comes free. A landing outlet in a split-entry foyer already sits 2 to 3 feet above the lower-level floor, which lifts the unit clear of the furniture layer without an extension cord — and what outlet height is worth in dB is worth knowing before you settle on one.

Two things routinely spoil an otherwise perfect landing, and both have workarounds.

• There is no outlet on it. Foyer landings often have only a switched outlet, or none. Take the nearest one on the router side of the landing rather than past it: too close costs reach, too far costs the backhaul.
• A door sits at the head of the flight. A closed solid-core door costs roughly 4 to 6 dB at the exact pinch point of the only good vertical path, the same trap two-story homes hit at the stairwell.

Worked plan: the bi-level#

Take 1,800 sq ft, 900 per level, timber joists, stud walls, the router in the lower-level rec room beside the coax entry, and a failing bedroom at the far end of the upper level.

Planning ranges for timber-framed, drywall-and-stud construction, not measurements we took.

Before you buy anything, ask the bi-level question: should the router itself move to the top of the stairs? In a raised ranch the service enters at the lower level, but the phones, laptops and TVs live upstairs. One coax or Ethernet run to the upper hall puts the router in the busy half of the house and often removes the need for an extender entirely — the general placement rules apply unchanged once it is up there.

Worked plan: the tri-level#

Now take 2,000 sq ft across three staggered levels: a garage and family room on the lower level, its floor 3 to 4 feet below grade; kitchen and living at grade on the main level; four bedrooms half a flight above, sitting over the lower level. Both short flights meet a central core off the main-level hall. Work in this order.

1. Mark both stair openings on your sketch. Every position in a split-level is measured from them, not from the middle of a floor plan.
2. Name the single room that has to work. Not "upstairs" — the specific room whose failure made you search for this.
3. Fix the router first. Move it out of the lower-level corner, onto the main level near the stair core, 4 to 5 feet off the floor. This is free and it frequently ends the project.
4. Draw two lines: router to the landing that serves the problem level, then that landing to the room. The first should cross at most one wall. The second, one or two.
5. List the outlets within about 10 feet of that landing that sit at waist height or above and are not inside a closet.
6. Pick the one furthest along the second line that still reads -60 to -67 dBm back to the router. If nothing there reaches that window, return to step 3.
7. Test in the problem room, with the activity that made you care. If it improved but is still marginal, move one outlet toward the router and retest.

In most tri-levels one unit at the upper landing covers the whole bedroom wing, and the family room stays the router's own job — it is only a half-flight down from the main level. If the family room is weak too, add a second unit at the lower landing, hanging off the router on its own leg. Never chain it behind the first: a single-radio repeater already halves throughput, and one behind another halves it again.

When an extender is the wrong tool for a split-level#

• The lower level is below grade on three sides. Poured concrete foundation walls run 15 to 25 dB, and the earth behind them ends the path outright. Only the stair opening and the daylight windows carry anything — the whole problem in covering a below-grade lower level.
• The lower level is mostly garage. Fire-rated construction, a steel door on the house side, a concrete slab underfoot. Plan it as a separate zone, not a room your extender will reach.
• It is a four-level split. Four planes and three stair cores is a two-unit job at minimum, planned together, and never more than two wireless hops from the router.
• The bedroom wing needs real throughput. A single-radio extender hands back roughly half what the router would deliver at the same signal level. Fine for phones, thin for a home office pushing large uploads — at which point a wired backhaul over Ethernet or MoCA turns the upper level into a second starting point.
• Nothing near the landing reads better than -70 dBm back to the router. A unit with a bad parent link is worse than no unit, because devices will connect to it anyway.

Sketching the half-floors before you buy#

Offset levels are hard to hold in your head and easy to draw. Sketch each half-level in Range Up, or open one of the starter layouts, stack them, and turn the 3D view on to see which parts of the plan genuinely share a floor plane — that one detail is what a split-level lives or dies on. Set the material preset to whichever build yours is closest to, raise the floor loss if the joists are heavier than average, drop the router onto the level it really occupies, then mark the bedroom that has to work. The app tries position after position on both sides of the landing and sorts them by the gain in that single room, so the landing theory either holds for your house or it does not.

Try the router on two different levels while you are there. If moving it closes the gap, you just saved the price of the extender. Draw your half-floors, or read the extender placement walkthrough first.
