Wi-Fi Extender Placement in an Apartment: Walls, Not Distance

Your router sits 40 feet from the far bedroom with one wall in between, and the Wi-Fi in there is still unusable. In a house that would be a coverage problem. In an apartment it usually is not, because 40 feet of clear indoor air rarely costs enough to break anything.

Something else is happening: one very unfriendly wall, or forty other networks sharing your channel. An extender helps with the first and actively makes the second worse. So before you decide where to plug one in, work out which one you have.

Distance is almost never your problem#

Run the numbers on a typical apartment. Most are 600 to 1,200 square feet, and the longest straight line inside one is 30 to 50 feet.

Over a clear indoor path, 5 GHz gives up roughly 20 to 25 dB between a foot from the router and 40 feet away, because each doubling of distance in open air costs about 6 dB. Start from the -30 dBm or so you read standing next to the router, and a clear 40-foot path still lands somewhere around -50 to -58 dBm at the far end. That is enough for 4K streaming and video calls.

Now put one concrete shear wall on that line and subtract another 15 to 25 dB. The same spot reads -65 to -83 dBm, where 5 GHz link rates collapse and your phone starts falling back to 2.4 GHz. Nothing about the distance changed.

That is the entire apartment story in one paragraph: your signal is not spread thin, it is blocked at a specific place. Find that place and you have found where the extender goes.

The two things that actually break apartment Wi-Fi#

Your neighbors#

In a dense building your phone can hear 20 to 40 other networks. Wi-Fi is polite by design: a radio that hears someone else transmitting waits its turn. On 2.4 GHz, which has only three genuinely non-overlapping channels, that means you are queuing behind every neighbor on your channel, not just your own household.

The tell is that this looks nothing like a coverage problem. Signal is strong, bars are full, and everything is slow anyway, especially between 7 and 11 pm. That symptom pattern is covered in why full bars can still mean buffering, and the channel side of the fix in apartment channel congestion.

An extender makes congestion worse. A single-radio unit has to say everything twice on one channel, so your household ends up occupying roughly twice the airtime for the same traffic. Where airtime is the scarce resource, that is like sending a second person to repeat every sentence you say at a crowded dinner table.

One dense wall#

The other apartment failure is structural, and it is very local. Apartments have obstacles that houses mostly do not: cast concrete cores, tiled wet walls stacked floor to floor, and building risers full of metal.

Numbers are typical ranges, not measurements. Material-by-material detail lives in what each building material costs you; what matters here is that a single one of these can outweigh every foot of distance in your apartment.

Tell the two apart in five minutes#

Do this before buying anything.

1. Stand next to the router and run the thing that annoys you — a video call, a 4K stream, a big upload. If it is bad here, coverage is not your problem and an extender will not fix it. Look at congestion or your internet plan instead.
2. Walk slowly to the dead room, watching a live speed or a video call. A sudden cliff at one doorway or one wall means a structural block. A gradual, even fade means distance, which is rare in an apartment.
3. Repeat at a quiet hour, early morning or late at night. If the far room is fine at 7 am and unusable at 9 pm while the signal reading barely moves, your neighbors are the problem, not your walls.
4. Check what band you are on. A device that has fallen back to 2.4 GHz in a crowded building can show a strong signal and still crawl. If the far room only works on 2.4 GHz, you have confirmed the wall is blocking 5 GHz.

Two of those four outcomes mean the answer is not an extender. That is worth five minutes.

The hallway outlet that fixes most apartments#

If step 2 gave you a cliff, here is the placement that works in the majority of apartments.

Most apartments are a short hallway with rooms hanging off it. Doorways are apertures — signal travels down the hallway and turns into each room through the open door far more easily than it punches through the wall between the living room and the bedroom. So you do not push through the obstacle, you go around it.

Put the extender in the hallway, about two thirds of the way from the router toward the dead room, at an outlet with a clear view of both the router's room and the dead room's doorway.

Two conditions make or break it:

• It must still hear the router well. The usable window is where the router reads about -60 to -67 dBm, which in an apartment is nearly always achievable in the hallway. The reasoning behind that window is in the halfway rule and where it breaks.
• Its path into the dead room must not cross the same wall that caused the problem. If the concrete core sits between the hallway and the bedroom, the hallway spot buys you nothing — you have moved the transmitter but kept the obstacle.

Practical details that are each worth a few dB: waist height or higher rather than a baseboard outlet, out in the open rather than behind the coat rack, and not on the same wall as the bathroom plumbing or the fridge.

For long, thin layouts where the hallway itself is the whole apartment, the geometry changes a little — see the plan for long, narrow apartments.

When an extender is the wrong tool here#

Say it plainly, because in apartments this is a large share of cases:

• Congestion. If the problem is neighbors, an extender doubles your airtime use and makes the building worse for everyone, including you. Change channels, narrow the channel width, or move to 5 GHz.
• Studios and small one-bedrooms. Under roughly 700 square feet, moving the router six feet out of the media cabinet or off the floor fixes it more often than any purchase. Renters have more room to maneuver than they think — the cable slack, the shelf height, the direction the antennas point. Renter-friendly fixes covers what you can change without touching the building.
• A router locked in a metal utility closet. No extender placement rescues a transmitter inside a metal box. Get the router out of the closet, or run a cable out of it to an access point in the open.
• A home office behind concrete that needs reliable upload. A repeated signal through a hard wall is a fragile way to hold a video call. A flat Ethernet cable run under the baseboard trim takes 15 minutes, costs less than an extender, and comes up with you when you move.

An extender earns its place when you have a real signal cliff, an outlet on the router's side of it, and a path into the dead room that avoids the obstacle. That is a specific set of conditions, not a default.

Testing it on a floor plan first#

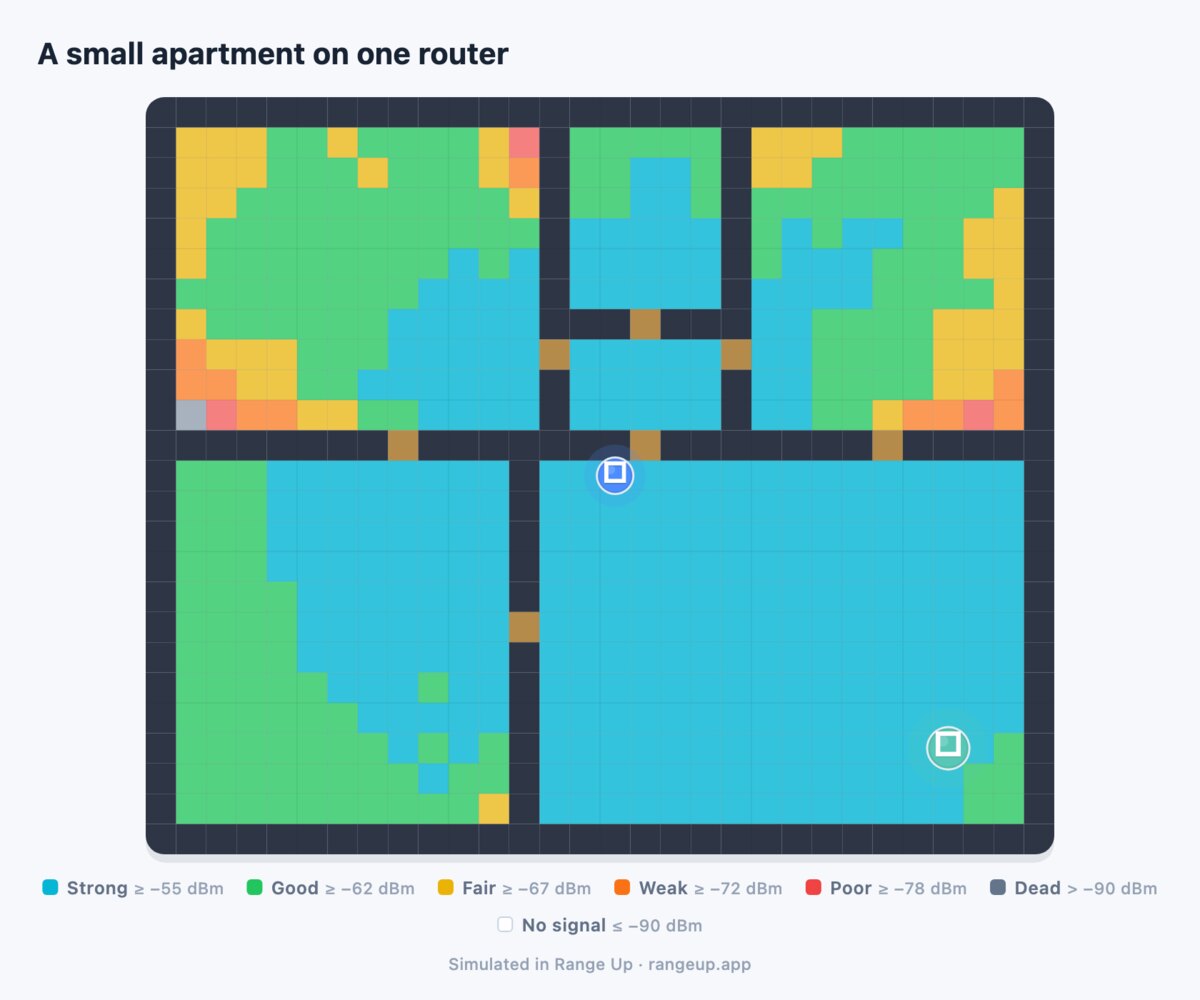

Apartments are small enough to sketch in about a minute, which makes them the easiest case for planning before buying. In Range Up you draw the layout, pick the material preset that matches the building — Concrete where the core is cast, Wood frame where it is studwork — place the router where it actually sits, and read the coverage room by room. Nominate the bedroom that fails, and the placement search works through the outlets an apartment actually offers — the hallway, the living room wall, the spot beside the front door — and sorts them by how much each one lifts that bedroom. Because the wall is the whole problem here, the ranking usually turns on which side of the concrete a candidate sits on rather than on how close it is to the bedroom door.

For an apartment, the most useful outcome is often a negative one: if the simulated improvement in the far bedroom is only a couple of dB, the wall is not the issue and your money belongs somewhere else. Try it on your own layout, or read the wider placement guide first if you have not decided on hardware yet.
