L-Shaped Floor Plans and the Room Around the Corner

The router is in the living room at one end of the L. The far bedroom is in the other wing, 45 feet away in a straight line — and that straight line goes through your back yard. Inside the house there is no straight line at all, only a dogleg through the kitchen and four walls you never counted.

L-plans fail in a way that square houses do not, and the fix is almost always geometric rather than a bigger router.

Radio does not turn corners#

Wi-Fi travels in straight lines. Almost everything a device receives arrived on the direct path, weakened by whatever it passed through. Two other mechanisms exist and neither is generous:

• Reflection. Signal bounces off walls, floors and cabinets, losing energy each time. Down a corridor those reflections keep the run alive. Around a 90-degree turn they are all that is left.
• Diffraction. Radio bends slightly around an edge, like light spilling past a doorframe, and the sharper the shadow the less arrives.

The consequence in an L-plan: the hallway that behaves like a waveguide down one wing stops the moment it turns. Stand at the elbow and signal is fine. Walk 15 feet into the second wing and it falls away far faster than distance explains, because everything you are receiving now crossed a wall to reach you.

The shortest path goes through your back yard#

Draw the direct line from a router in one wing to a room in the other and it usually cuts across the open notch of the L — outside the house, over the patio, and back in. That path crosses two exterior walls, and what those walls are made of decides everything.

Typical planning ranges for common construction, not measurements we took.

So: if the two wings face each other across the notch through ordinary windows, the outdoor route is real and the router belongs where it can use it. If the house is masonry, or the glazing is coated, that route does not exist and the whole path goes through the elbow.

The interior diagonal is worse than the wall count suggests#

If the signal has to stay inside, it takes the dogleg — and a diagonal path crosses walls at an oblique angle rather than square on.

Attenuation tracks the distance spent inside the material, so a wall met at 45 degrees presents roughly 1.4 times its thickness, and one met at a 30-degree glancing angle roughly twice. A partition that costs 5 to 8 dB head-on can cost 8 to 16 dB on a shallow diagonal. The per-material table and the full explanation of incidence angle live in how walls affect Wi-Fi signal.

Now count what the dogleg crosses in a typical L: the living room partition, the kitchen wall, the appliance run, a bathroom or laundry stack at the elbow, then two or three bedroom walls. Five or six obstacles, several met at an angle, several dense. A 5 GHz radio that holds a usable signal 50 to 75 feet through one or two ordinary walls will not survive that, and the far bedroom lands around -78 dBm or worse — connected, useless.

The old exterior wall in the middle of your house#

Many L-plans are not designed as an L. They are a rectangle plus an addition, and the wall where the two meet used to face the weather. That wall is interior now, so it looks harmless on a floor plan. It is nothing of the sort.

Look for brick or block that was never removed, foil-faced insulation, or metal flashing at the junction. Any of those puts 10 to 25 dB in the middle of the house, at the one point every path has to cross. If the extension is the wing that fails, and it fails abruptly at the doorway rather than gradually across the room, this is almost always why. Masonry in general is covered in Wi-Fi in old, solid homes.

The workaround is usually the opening, not the wall. Whatever doorway connects the original house to the addition is a hole in that barrier, and a unit in line with it does far better than one placed by square footage.

Put the unit at the inside of the L#

The inside corner — the elbow, where the two wings meet — is the only point in the building with a clear run down both wings at once. From there, each wing's hallway carries signal the way a hallway is supposed to, and the rooms off it are first doorways rather than fifth obstacles.

Follow this literally.

1. Sketch the L and mark three things: where the router really is, the inside corner, and the one room that has to work.
2. Draw two legs: router to the inside corner, then inside corner to that room. Count the walls on each and note the material.
3. Check leg one. If it crosses more than about two interior walls, the elbow is too far from the router to work as an extender position, and the router has to move toward it first.
4. List the outlets within about 10 feet of the inside corner, at waist height or above, in open circulation space rather than a closet or a cabinet.
5. Pick the outlet furthest along leg one that still reads about -60 to -67 dBm back to the router. That window is the whole rule, and why it beats the halfway rule applies here like anywhere else.
6. Look at what is physically at the elbow before you commit. Kitchens, laundries and plumbing stacks love inside corners, and a refrigerator or a wall of pipes shadows one wing completely. Moving 6 feet along the hallway often beats every other adjustment.
7. Test in the far room with the activity that made you care, then move one outlet toward the router if it improved but is still marginal.

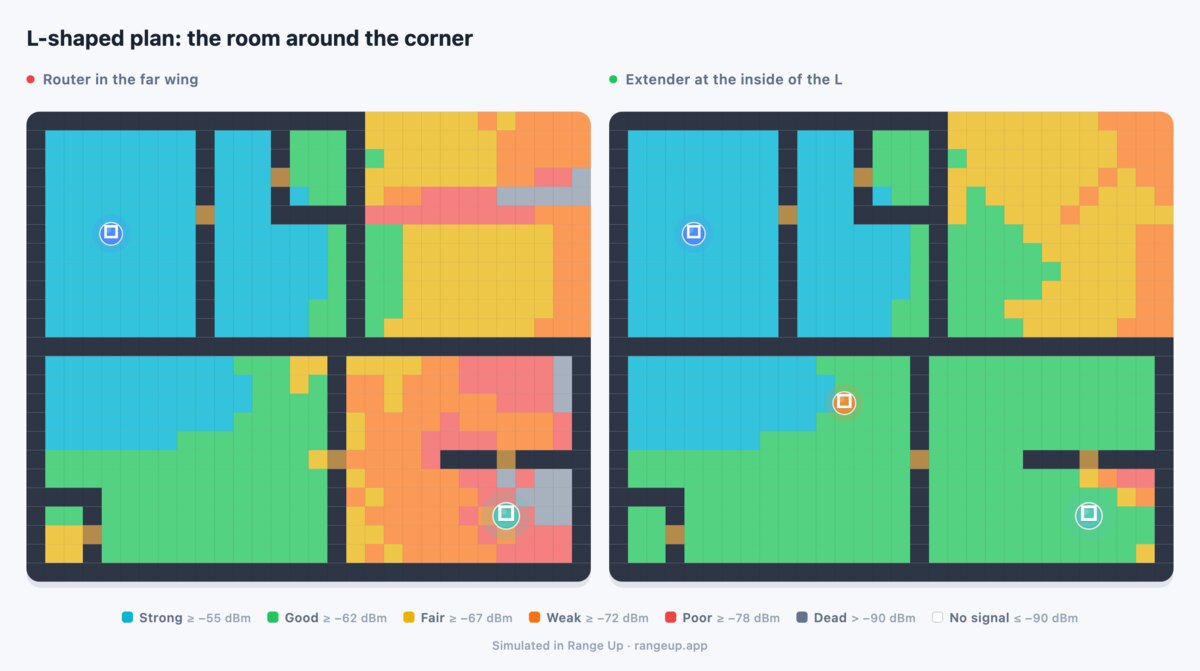

Here is how that plays out in a 2,200 sq ft L with a 40-foot living wing, a 34-foot bedroom wing and the router at the far end of the first.

Planning ranges for a timber-framed L, not readings we took. A well-placed elbow unit should lift that bedroom by 10 dB or more. If your own before-and-after is 3 dB, the position is wrong or the house needs something else.

When two nodes beat one#

One unit at the elbow gives you one coverage bubble centered on the corner. That is enough when both wings are short, and not enough in five situations.

• Both wings are long. As a rule of thumb, plan one broadcast point per 1,000 to 1,500 sq ft in open, timber-framed construction, and per 700 to 1,000 sq ft in brick, block or plaster. An L with two 35-foot wings is already two zones.
• The elbow is unusable. A kitchen appliance run, a plumbing stack, a masonry chimney or a stairwell at the corner leaves no position that sees both wings.
• The junction is an old exterior wall. Then the addition is its own zone regardless of size, with its own broadcast point on its own side of that wall.
• The wings sit on different levels. A stepped addition turns a corner problem into a vertical one as well.
• The far wing needs real throughput. A single-radio extender delivers roughly half what the router would at the same signal level. For a home office or a 4K TV at the end of the second wing, that often does not clear the bar no matter how good the placement is.

Be honest about the ceiling here. If both wings are masonry and the junction is an old exterior wall, no wireless position fixes the house. One Ethernet run or a MoCA link over the existing coax makes the second wing a fresh starting point with no throughput penalty, and beats anything you can plug into the elbow. And if your plan is really one long axis rather than two wings, that is a ranch-house problem instead.

Seeing the corner before you buy anything#

L-plans get solved badly because you cannot see the diagonal while standing in the house. On a floor plan it is obvious in two seconds: the line from the router to the failing room either goes through the notch or through six walls.

Draw the two wings in Range Up, set the material preset and the wall loss figure for what that junction really is rather than for the light partitions around it, and put the router on the shelf it actually stands on. The map then shows the thing you cannot see from inside the building: whether the strong route to the far wing crosses the notch through glass, or has to dogleg through six walls. Mark the bedroom in the second wing, let the app try positions along both legs of the dogleg, and compare what the elbow candidates deliver against the ones deeper into the wing. The before-and-after pair for the winner is usually the argument that ends the debate. A best candidate that barely moves that bedroom is worth just as much: it means the money belongs in a cable running down the second wing. Sketch your L and test the elbow yourself, or start with the general extender placement walkthrough.
